YH GL-L05  Granular Dry Ice Machine

YH GL-L05 Granular Dry Ice Machine

Fittings:

Features:

Air Tube:3/4 Inch air tube, 10M length one piece

Ice Spray Tube: (With gun handle and control cable) 3/4 inch, standard length 5M

Nozzles: Two

One set of safety protection kit (including gloves, mask, earmuffs, dry ice shovel, etc.)

Small size, using the new dry ice feeding system, effectively reduce the wear of the sealing block and the rotor that is easy to move; Use of compact motor and patented ice tray to reduce weight and energy consumption; Eliminate jet pulsation for precise ice supply; pressure regulating device on the panel: 3mm pellet dry ice is used; Imported + domestic components.

Application Range:

For cleaning grease/dirt, paint/welding slag, conveyor belts/packaging equipment/hobs/hobs/chains in general machinery and equipment, general foam/PET injection molds, automotive chassis, robots and automation equipment;

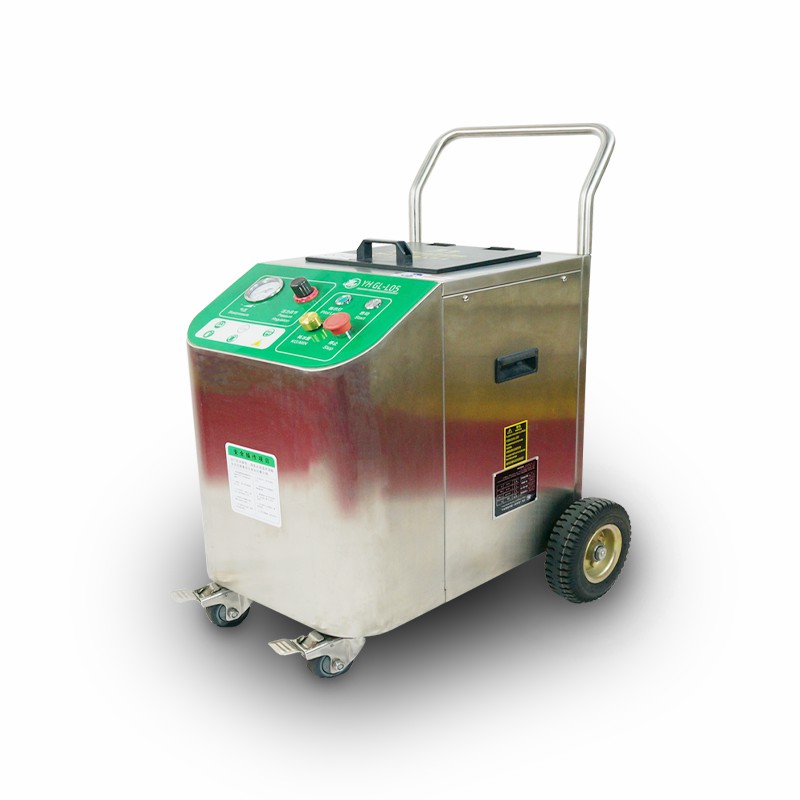

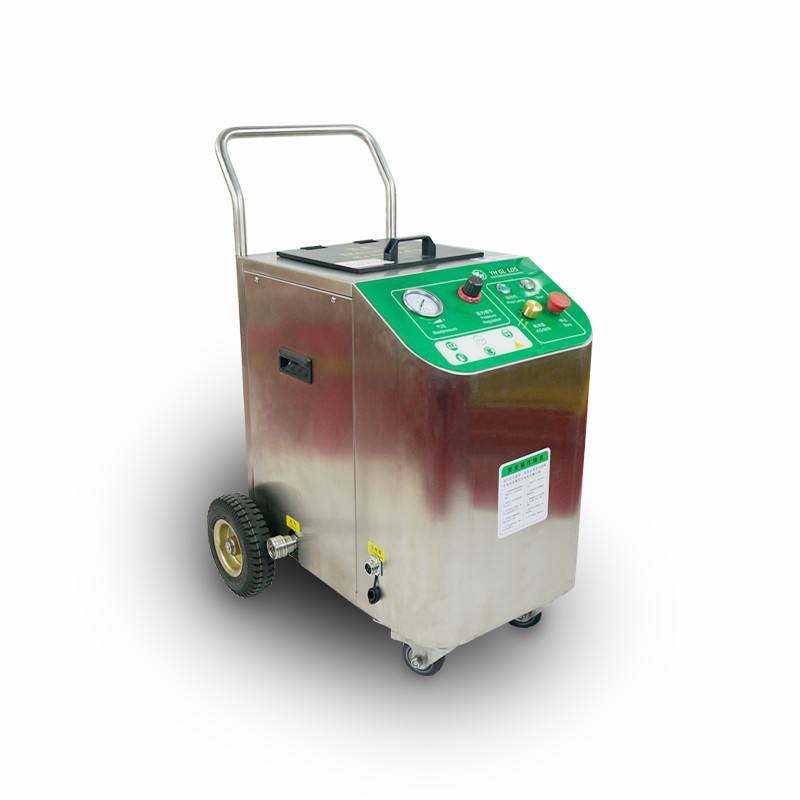

Product display:






Technical Parameters:


Dry ice capacity:
<10kg
Dosage adjustable range:
0---3.0kg/min
Air supply pressure:
6---8bar
Air source flow demand:
1.0-3.0m³/min
Equipment weight:
60kg
Overall dimension (length) :
620mm
Overall dimension (width) :
500mm
Overall dimension (height) :
400mm
Number of nozzle:
1支
Power supply:
200--240VAC(50/60HZ)
Dry ice Size:
3.0mm柱状
