YH GK-L05  Ice Maker

YH GK-L05 Ice Maker

Fittings:

Features:

Air Tube:  12 quick air tube, 5M length two pieces (standard)

Ice Spray Tube: (With gun handle and control cable) 1/2 inch, standard length 4M

Nozzles: Two

One set of safety protection kit (including gloves, mask, earmuffs, etc.)

Dry ice particle blasting, precision cleaning; Small size, self-contained trolley, easy to move; Detachable panel, easy maintenance, injection pressure is not adjustable; High-speed jetting using block dry ice, integrated cable with ground wire, discharge static electricity; Low temperature resistant burst-proof dry ice pipe, patented rotor ice feeding device; Domestic components.

Application Range:

For cleaning precision molds, precision parts, precision instruments, product burrs, semiconductor circuit boards, integrated circuit boards and other products;

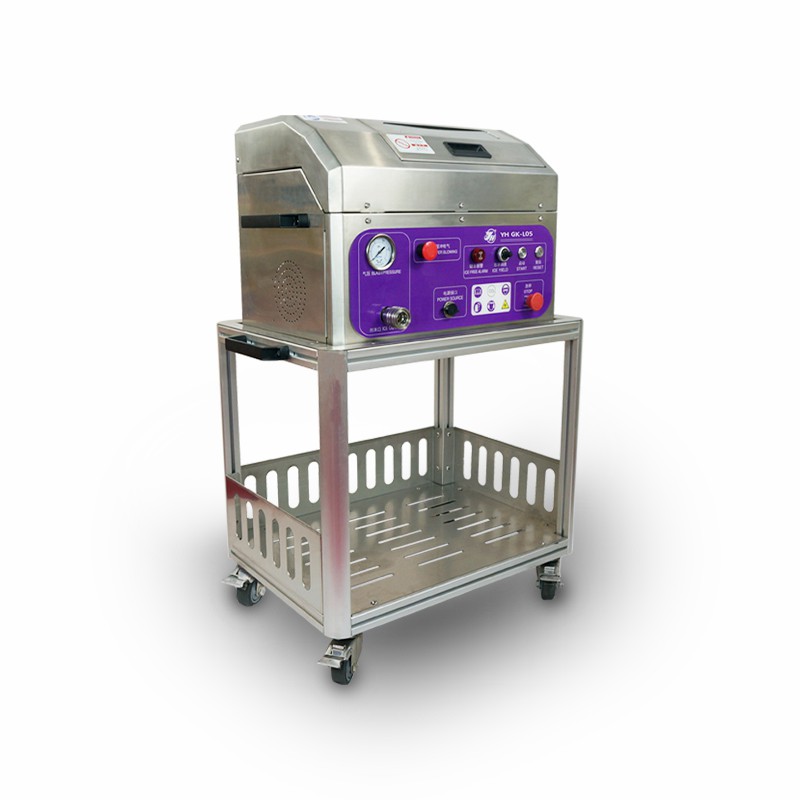

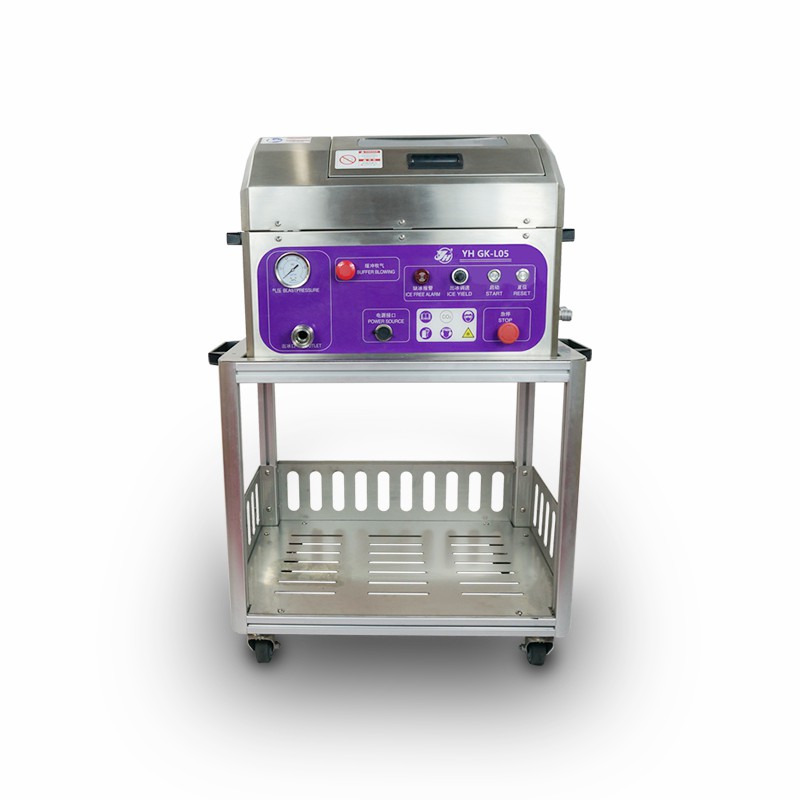

Product display:






Technical Parameters:


Dry ice capacity:
<8kg
Dosage adjustable range:
0---0.5kg/min
Air supply pressure:
2---8bar
Air source flow demand:
0.5-1.5m³/min
Equipment weight:
80kg
Overall dimension (length) :
800mm
Overall dimension (width) :
500mm
Overall dimension (height) :
1100mm
Number of nozzle:
1支
Power supply:
200--240VAC(50/60HZ)
Dry ice Size:
≤140*140*280mm
